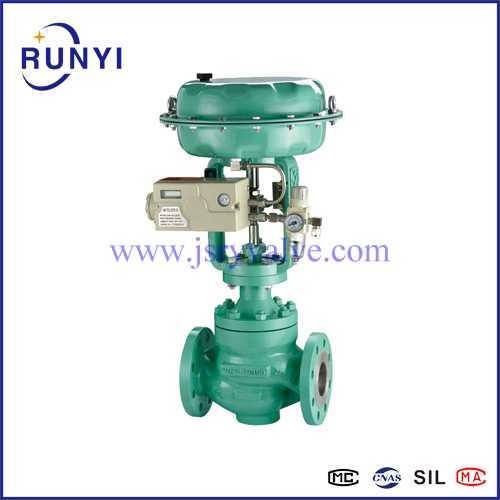

Globe control valve

Globe control valve

Overview of Globe control valve

The Globe control valve adopts top guide structure and is equipped with multi spring actuator. The utility model has the advantages of compact structure, light weight, sensitive action, s-streamline filling channel, small pressure drop loss, large valve capacity, accurate flow characteristics, convenient disassembly and assembly, etc. It is widely used to accurately control gas, liquid and other media, and keep the process parameters such as pressure, flow, temperature and liquid level at the given value. It is especially suitable for working occasions with small allowable leakage and small pressure difference before and after the valve.

Main tech of Globe control valve

Model: XF61,XF62

Structure: Globe control valve, sliding stem

Size: DN15～DN250

Rating: PN16~PN63 (CL150~CL600)

Body: WCB, CF8, CF8M, CF3,CF3M

Trim: 304SS, 316SS, 316LSS

Actuator: Multi-spring pneumatic diaphragm

Accessries: Positioner, air fliter. etc

Structural features of Globe control valve

It has the characteristics of compact structure, light weight, sensitive action, large valve capacity, accurate flow characteristics, convenient disassembly and assembly, etc.

Note: Any special design or question of  Globe control valve， kindly contact the manufacturer for more details.
