Pneumatic globe control valve

Pneumatic globe control valve

Overview of Pneumatic globe control valve

The Pneumatic globe control valve adopts top guide structure and is equipped with multi spring actuator. The utility model has the advantages of compact structure, light weight, sensitive action, s-streamline filling channel, small pressure drop loss, large valve capacity, accurate flow characteristics, convenient disassembly and assembly, etc. It is widely used to accurately control gas, liquid and other media, and keep the process parameters such as pressure, flow, temperature and liquid level at the given value. It is especially suitable for working occasions with small allowable leakage and small pressure difference before and after the valve

Main tech of Pneumatic globe control valve

Model: XF61,XF62

Structure: Globe control valve, sliding stem

Size: DN15～DN250

Rating: PN16~PN63 (CL150~CL600)

Body: WCB, CF8, CF8M, CF3,CF3M

Trim: 304SS, 316SS, 316LSS

Actuator: Multi-spring pneumatic diaphragm

Accessries: Positioner, air fliter. etc

Features of  Pneumatic globe control valve

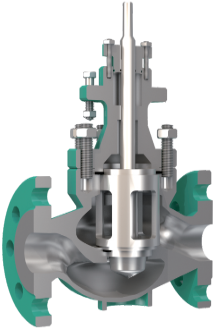

The top guide single seat regulating valve has compact structure, few parts and easy maintenance.

The metal valve core is applicable to a variety of working occasions and reaches the level IV leakage standard. The zxpq soft sealing structure valve core reaches the level VI leakage standard.

The valve body is designed into an equal cross-section low flow resistance channel according to the principle of hydrodynamics, and the rated flow coefficient is increased by 30%.

The adjustable range is large, and the inherent adjustable ratio is 50.

The actuator adopts multi spring structure, which reduces the height and weight by 30%.

Note: Any special design or question of  Pneumatic globe control valve， kindly contact the manufacturer for more details.
