Wafer connection V-port control valve

Wafer connection V-port control valve

Overview of Wafer connection V-port control valve

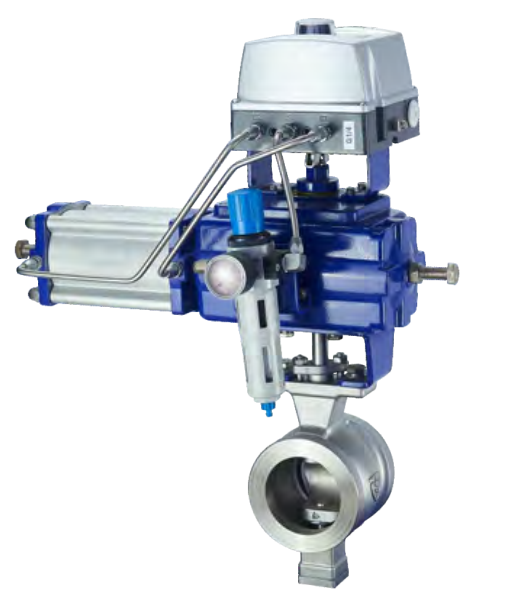

Wafer connection V-port control valve  adopts the movable valve seat structure loaded by leaf spring. The valve seat and the ball will not have problems such as jamming or separation, and the sealing is reliable and the service life is long. The valve core of the V-shaped ball valve is designed as a V-shaped notch with a special switch, which has large flow capacity, small pressure loss, accurate closure characteristics and control functions, and the flow characteristics are approximately equal percentage. The V-shaped ball defect structure is adopted for the hoist, which completely solves the problem that the valve chamber is easy to deposit media. The wafer V-shaped pneumatic ball valve is composed of a double (single) acting pneumatic piston actuator and a quick mounted ball valve. The pneumatic piston actuator uses low friction materials to make the bearing sleeve, and the inner and outer surfaces of the cylinder body are hard anodized for corrosion prevention, which greatly improves the service life of the cylinder. This product has stable performance and is widely used in petrochemical, metallurgical, electric power, food and other industrial sectors.

Model of Wafer connection V-port control valve

VQ977H, VQ977H-16, VQ977Y, VQ977Y-16

VQ977F, VQ977F-16, VQ677H, VQ677H-16

VQ677Y, VQ677Y-16, VQ677F, VQ677F-16

Features of Wafer connection V-port control valve

■ it is suitable for regulating flow and has flow characteristics

■ suitable for harsh media with solid substances (PTFE seal is not applicable)

■ the middle shaft seal is a movable pressing block, which facilitates the maintenance of the seal

■ compact and economical valve body

■ the sealing surface can be treated with tungsten carbide

Note: Any special design or question of  Wafer connection V-port control valve,  kindly contact the manufacturer for more details.
