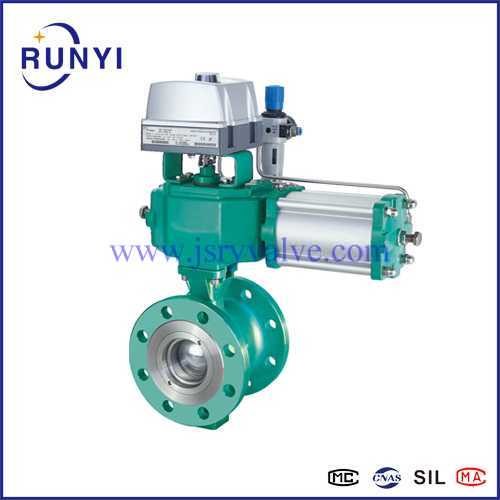

VQ647Y VQ647Y-16 VQ647Y-16C VQ647Y-16P Pneumatic segment ball valve

VQ647Y VQ647Y-16 VQ647Y-16C VQ647Y-16P Pneumatic segment ball valve

Overview of VQ647Y VQ647Y-16 VQ647Y-16C VQ647Y-16P Pneumatic segment ball valve

VQ647Y VQ647Y-16 VQ647Y-16C VQ647Y-16P Pneumatic segment ball valve is a kind of ball valve. Its closing part is a hemispherical body with a V-shaped opening. The V-shaped opening has a sharp edge. During the rotation of the ball, there is a wiping effect between the closing parts, which has a strong cutting force on the medium. The V-shaped opening of the ball and the valve seat channel form a fan-shaped area, which can change the cross-sectional area of the channel during the rotation, It is a kind of angular rotation regulating valve. Its sealing performance is the same as that of ordinary ball valve, so that it has two functions of regulation and switching at the same time. It is matched with pneumatic or electric actuator and is widely used in industrial process automatic control system

Application scope of V-type ball valve: Energy, petrochemical, metallurgy, chemical industry, mining, papermaking, environmental protection, biochemistry, pharmacy, petroleum, electric power, printing and dyeing, light industry, food, tobacco, sugar, beverage and other fields.

Main tech of VQ647Y VQ647Y-16 VQ647Y-16C VQ647Y-16P Pneumatic segment ball valve

Structure: V-port, segment ball, metal seat

Size: DN25~DN500 (1'~20')

Rating: PN16~PN64 (CL150~CL600)

Body: WCB, CF8, CF8M

Trim: 304SS, 316SS, 316L

Actuator: Pneumatic cylinder, single & double acting

Accessries: Positioner, air fliter. etc

Note: Any special design or question of VQ647Y VQ647Y-16 VQ647Y-16C VQ647Y-16P Pneumatic segment ball valve， kindly contact the manufacturer for more details.
