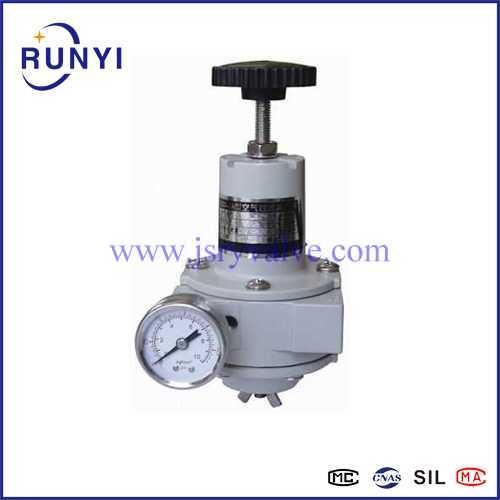

KZ03-1B KZ03-2B KZ03-3B Air regulator

KZ03-1B KZ03-2B KZ03-3B Air regulator

Overview of KZ03-1B KZ03-2B KZ03-3B Air regulator

KZ03-1B KZ03-2B KZ03-3B Air regulator can be equipped with high-precision pressure reducing valve according to the requirements of output pressure accuracy; In the process of use, after the compressed air passes through the two-stage three-stage filter to remove the impurities such as oil, water and dust in the compressed air, the service life of the pressure reducing valve diaphragm and the precision of pressure regulation are greatly improved; Due to the long service life of the filter element, the filter element and pressure reducing element can be repaired separately in maintenance without overall replacement, which greatly saves the cost.

working principle of KZ03-1B KZ03-2B KZ03-3B Air regulator

KZ03-1B KZ03-2B KZ03-3B Air regulator is designed according to the principle of force balance. When the air pressure from the air compressor is connected to the input end, it enters the filtered air chamber (a) for water, oil and dust removal. Due to the force generated by the given spring, the ball valve is pushed away, so the air flows through the ball valve into the output pipe and enters the feedback air chamber (b) through the feedback pipe. At this time, the air pressure acts on the pipe and enters the feedback air chamber (b) At this time, the force of air pressure acting on the diaphragm is balanced with the force of a given spring.

Features of KZ03-1B KZ03-2B KZ03-3B Air regulator

An additional balance poppet for outlet pressure provides fast response

With precise pressure regulation, it is suitable for optimal pressure control.

Integral control piston, lip seal, long service life.

Full flow pressure gauge air port.

Press locking adjusting knob with protective cover.

Compact structure and convenient maintenance

Note: Any special design or question of KZ03-1B KZ03-2B KZ03-3B Air regulator， kindly contact the manufacturer for more details.
