ZDR-35002 ZDR-35112 ZDR-35122 Electric eccentric rotary valve

ZDR-35002 ZDR-35112 ZDR-35122 Electric eccentric rotary valve

Overview of ZDR-35002 ZDR-35112 ZDR-35122 Electric eccentric rotary valve

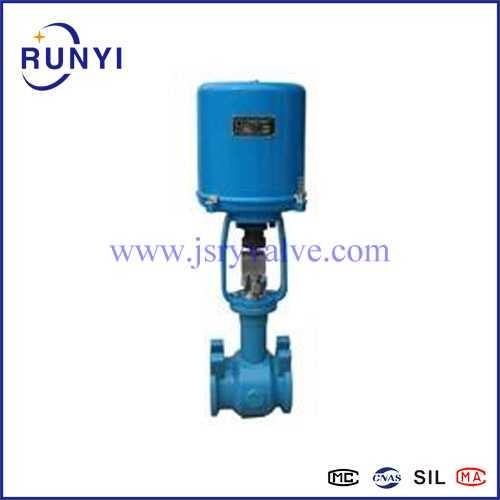

ZDR-35002 ZDR-35112 ZDR-35122 Electric eccentric rotary valve is composed of angular stroke electronic electric actuator through support and deflection regulating mechanism. The utility model has the advantages of compact structure, convenient operation, high adjustment accuracy, large flow capacity, good sealing, etc. It is widely used in automatic regulation and remote control of industrial production processes such as chemical industry, petroleum, metallurgy, and power station.

Ordering instructions

The following conditions shall be specified when ordering:

Product model.

Nominal diameter DN, rated flow coefficient kV.

Differential pressure.

Valve body material.

Working temperature relationship.

Is there a space heater in the electric actuator.

Is the electric actuator equipped with overload protection device.

Are there any other special requirements.

Working Principle of ZDR-35002 ZDR-35112 ZDR-35122 Electric eccentric rotary valve

The regulating valve is composed of electric actuator or pneumatic actuator and regulating valve. The regulating valve is usually divided into straight through single seat regulating valve and straight through double seat regulating valve. The latter has the characteristics of large flow capacity, small imbalance and stable operation, so it is usually especially suitable for occasions with large flow, high pressure drop and less leakage .The regulating valve is used to regulate the flow, pressure and liquid level of the medium. The opening of the valve is automatically controlled according to the signal of the regulating part, so as to achieve the regulation of medium flow, pressure  and liquid level. The regulating valve is divided into electric regulating valve, pneumatic regulating valve and hydraulic regulating valve

Features of ZDR-35002 ZDR-35112 ZDR-35122 Electric eccentric rotary valve

Nominal diameter DN:DN25-DN300

Valve seat diameter mm:25-300

Nominal pressure Mpa: 6.4

Valve core rotation angle:50

Medium temperature ℃: -20~200；-40~350

Flange size：JB79-59

Diameter of valve core and valve seat：ZG270-500； ZG1Cr18Ni9Ti

Note: Any special design or question of ZDR-35002 ZDR-35112 ZDR-35122 Electric eccentric rotary valve，kindly contact the manufacturer for more details.
