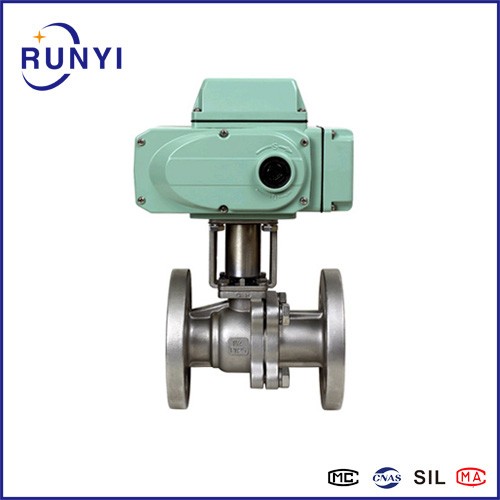

Q941F-25 Q941H-25 Q941Y-25 Electric ball valve

Q941F Q941F-25 Q941H-25 Q941Y-25 Electric ball valve

Overview of Q941F-25 Q941H-25 Q941Y-25 Electric ball valve

Q941F-25 Q941H-25 Q941Y-25 Electric ball valve is suitable for two position cut-off and regulation. The connection between the valve and the actuator adopts the direct connection mode, which is composed of electric actuators such as UNIC, PSQ, HQ and DHL (other types of electronic electric actuators can also be configured according to user requirements) and ultra short ball valve. The electric actuator has a built-in servo system, without additional servo amplifier. It can control the operation by inputting 4-20mA signal and 220V AC power supply.

Features of Q941F-25 Q941H-25 Q941Y-25 Electric ball valve

1. Floating ball valve adopts full bore or reduced bore design, with small flow resistance.

2. It has a fire-proof and anti-static structure, and a conductive spring is set between the valve rod and the valve body and between the valve rod and the ball to avoid igniting flammable media due to electrostatic ignition. Ensure system security.

3. The fire-resistant structure has double protection. In case of fire and burning of the sealing ring, each sealing part of the ball valve can form a metal to metal hard sealing structure.

Main tech of Q941F-25 Q941H-25 Q941Y-25 Electric ball valve

Structure: Metal seat, on-off function

Size: DN15~DN300 (1/2"~12")

Rating: PN16~PN64 (CL150~CL600)

Body: WCB, CF8, CF8M

Trim: 304SS, 316SS, 316L

Actuator: Electric with switching value

Note: Any special design or question of Q941F-25 Q941H-25 Q941Y-25 Electric ball valve， kindly contact the manufacturer for more details.
