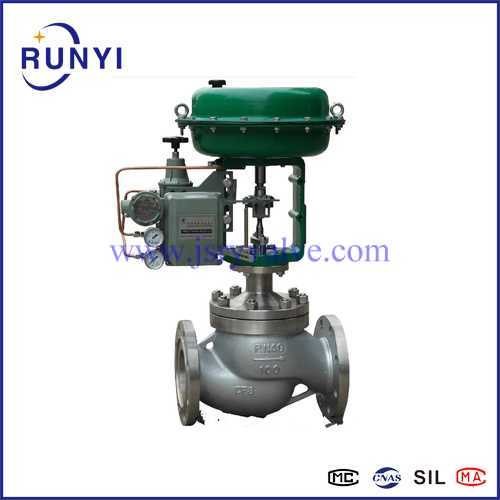

ZMBM ZMBM-40 ZMBM-64 Pneumatic cage guided control valve

ZMBM ZMBM-40 ZMBM-64 Pneumatic cage guided control valve

Overview of ZMBM ZMBM-40 ZMBM-64 Pneumatic cage guided control valve

ZMBM ZMBM-40 ZMBM-64 Pneumatic cage guided control valve is a common product in pneumatic actuators. The sleeve valve can quantitatively control the flow according to a certain gas signal. Due to the structural characteristics of sleeve valve, it is not only suitable for general use, but also for occasions with large front and rear pressure difference and low noise requirements.

Features of ZMBM ZMBM-40 ZMBM-64 Pneumatic cage guided control valve

ZMBM ZMBM-40 ZMBM-64 Pneumatic cage guided control valve

1. Large circulation capacity.

2. Large allowable differential pressure and good stability.

3. Strong adaptability.

4. Convenient disassembly and assembly.

Main tech data of ZMBM ZMBM-40 ZMBM-64 Pneumatic cage guided control valve

Connection mode: flange type

Nominal pressure PN (MPA): 4.0, 6.4

Flow characteristics: straight line; Equal percentage

Rated stroke L (mm): 16, 25, 40, 6

Air source pressure (MPA): Standard 0.14; Optional 0.24

Air source interface: m16x 1.5

Action mode: air on; Airtight

Trim: Stainless steel and special material

Actuator: Multi-spring pneumatic diaphragm

Accessries: Positioner, air fliter. etc

Note: Any special design or question of ZMBM ZMBM-40 ZMBM-64 Pneumatic cage guided control valve, kindly contact the manufacturer for more details.
