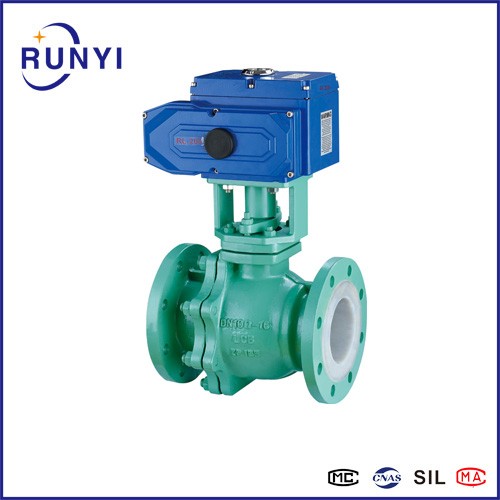

Q941F46 Q941F46-16 Q941F46-16P Q941F46-16C Electric lined ball valve

Q941F46 Q941F46-16 Q941F46-16P Q941F46-16C Electric lined ball valve

Overview of Q941F46 Q941F46-16 Q941F46-16P Q941F46-16C Electric lined ball valve

Q941F46 Q941F46-16 Q941F46-16P Q941F46-16C Electric lined ball valve  is designed for automatic opening and closing control of various strongly corrosive medium pipelines. It is widely used in petroleum, chemical industry, dyeing, pesticide, acid and alkali making and other industries. It is one of the most ideal choices for anti-corrosion valve equipment.

Features of Q941F46 Q941F46-16 Q941F46-16P Q941F46-16C Electric lined ball valve

1 corrosion resistance: the inner cavity and body of the valve body are lined with F46 with a thickness of 2.5-3mm, which can resist acid, alkali and strong corrosion.

2. Soft sealing valve seat is adopted, with good sealing performance.

3. The utility model has the advantages of small volume, light weight, simple structure and convenient installation and maintenance.

4. Small flow resistance, strong flow capacity and good flow characteristics.

Main tech of Q941F46 Q941F46-16 Q941F46-16P Q941F46-16C Electric lined ball valve

Structure: F46 Lined body and ball

Size: DN15~DN300

Rating: PN10, PN16

Body: WCB+F4, CF8+F4

Trim: 304+F4, 316+F4

Connection: Flange type

Actuator: Pneumatic cylinder, single & double acting

Note: Any special design or question of Q941F46 Q941F46-16 Q941F46-16P Q941F46-16C Electric lined ball valve， kindly contact the manufacturer for more details.
