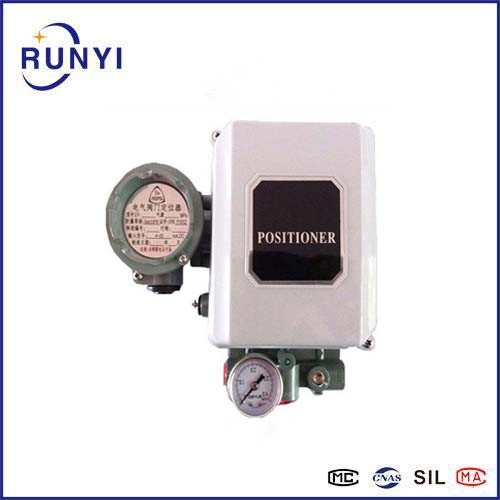

EP series Electro-Pneumatic Positioner

EP series Electro-Pneumatic Positioner

Overview of EP series Electro-Pneumatic Positioner

EP series Electro-Pneumatic Positioner is the key equipment of the managing valve, which is usually used with their pneumatic regulating device. It receives the outcome valve positioner signal from the regulator, and then controls the pneumatic regulating valve with its output sign. When the managing valve acts, the displacement of the valve rod is fed back to the valve positioner through the physical device, and the valve position condition is transmitted to the upper system through the electrical power signal. Electric device positioner is the key accessory of control valve.

Model of EP series Electro-Pneumatic Positioner

EP-2121  EP-2111 EP-2112 EP-2122

EP-4111 EP-4311 EP-4312 EP-4122

EP-4122 EP-4322 EP-4121 EP-4321

Advantage of  EP series Electro-Pneumatic Positioner

1. It has solid compatibility and interchangeability, and it has a range of application.

2. The pneumatic energy is large, the particular action speed will be fast, the multiple loop force stability structure is used, it is not really an easy job to oscillate, plus the action overall performance is stable plus reliable.

3. simply by exchanging the camera feedback device, it could be easily exchanged to choose output characteristics besides standard characteristics.

4. When the solitary acting actuator requirements reaction control, the particular positive acting amp can be very easily transformed into the reaction amplifier.

5. the through hook of the regular throttle mechanism may act to dust the throttle opening and keep the particular working air route unblocked.

6. Stress proof and explosion-proof type. The transmission input conclusion connection and coil are usually sealed inside a stress proof and explosion-proof structure. During servicing and stroke adjusting, the positioner covering can be eliminated during a contact explosion-proof area.

7. intrinsically safe, unique junction box plus coil intrinsically secure structure. The rpm coil can become put on all dangerous gas places (including zone 0) whenever utilized in blend along with a special Zener safety helmet.

8. It is a good easy task in order to modify and set up. It is far from necessary in order to open the covering to modify the particular zero point. This can be connected with mounting dishes suited to different actuators based on user needs. Adjustment and servicing can be transported out online.

Main tech of EP series Electro-Pneumatic Positioner

Model: EP3000, EP6000

Type: Electro-Pneumatic

Input: 4-20ma

Supply pressure: 0.14~0.9Mpa

Enclosure: IP67

Material: Aluminum casting

Note: Any special style or question regarding EP series Electro-Pneumatic Positioner,  generously contact the maker for more details.
